Access control system-1_Product List

Door contact sensor

Providing dry contact alarm signal to monitoring host via door access host or door contact sensors, realizing synchronized monitoring with door access control. When there were illegal intrusions, door contact will inform monitoring host through dry contact, the related admin will receive SMS and email alarm.

1. Monitoring open/close status of door

2. Output end is dry contact.

3. Max monitoring distance is 10-20mm

Access control controller

1. Support single door one-way, dual door two-way and four doors one-way and so on.

2. Support any card reader and Fingerprint Reader with WG26 format

3. Available for 20000 cards

4. Support 100000 offline storage records

Adroitor password card reader: AT1060

1. Type：EM-ID/Mifare-IC

2. Size：113mm*75mm*16mm

3. Color： Black

4. Work voltage： DC12V

5. Work current： ≤100mA

6. Work conditions：Recommended to used under -25 ℃ to 60 ℃,don’t exposure to outdoor sunlight

Work indication: buzzer and indicator

7. Sensing distance：0～8CM

8. Outputformat: International standard Wiegand 26bit 34bit (Set by dial switch, default is 26 bit

Finger attendance& access machine M7

1. Recognize metho：Finger，password, card

2. Hardware platform：ARM Industrial grade

3. Finger reader：High-precision full-reflection optical reader

4. Effective acquisition area：16*16mm（360 degrees recognizable）

5. Finger capacity：1000pcs

6. Record capacity：100000pcs

7. Attendance rate：<= 0.6 Sec

8. LCD：2.8 inch TFT High-definition colour screen

9. FAR ：<= 0.0001%

10. FRR ：<= 0.01%

11. Comparison / Contrast：1：N（Finger）1：1（Password）

12. Support RS 485

13. Standard equipped with TCP/IP

14. Standard equipped with ID card swiping, Mifaer card is available

15. Coordinate with access controller to be used as reader

16. Work current: 12 VDC

17. One-way Wigan 26/34 output

18. One-way alarm signal output

19. Anti-dismantle alarm

20. Reset button

21. Work temp.：0~60℃

22. Work humi.：20%~80%

23. Size：193*82*30 MM

24. Installation height above ground 110-130CM

Finger access controller F7

1. Finger template capacity 500 pcs

2. Records capacity 30000 pcs

3. Fingerprint verification1:1 or 1: N、password input available

4. Professional access control function, 50 time period,5 groups, 10 doors open combination, support offline operation

5. Electric lock control, 3A/12VDC relay output

6. Keyboard and LCD display integrates 80 characters and numeric keyboard

7. Power 12V DC

8. Standby current 50 mA

9. Work current 400 mA

10. Verification Rage ≤2 Sec

11. ERR ≤0.01%

12. FAR ≤0.0001%

13. Collector HD no film fingerprint collector

14. Use temp.0°C - 45°C

15. Use humi.20%-80%

16. Language: Chinese, English

17. Size 180*82*55

Face recognition access control machineE356A

1. Product: face recognition attendance machine

2. Verification mode: Face recognition, Job number+ Face recognition

3. Processor: High-speed digital media processor

4. Dual dedicated cameras

5. Storage capacity: 500 people, records capacity:150000pcs

6. FRR ＜1%

7. FAR ＜0.001%

8. Identify speed ＜1 Sec

9. Display screen: 3.5 inch TFT color screen, 60,000 color high color, 320 * 240 resolution

10. Keyboard key, 4*4 touch key

11. Communication ports: TCP/IP, U flash driver

12. Installation: Wall-mounted,desktop,recommended height 1150mm

13. Power voltage DC 12V

14. Size（L*W*H）：200mm*95mm*115mm

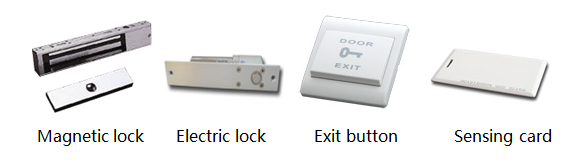

Other accessories

Door contact sensor
